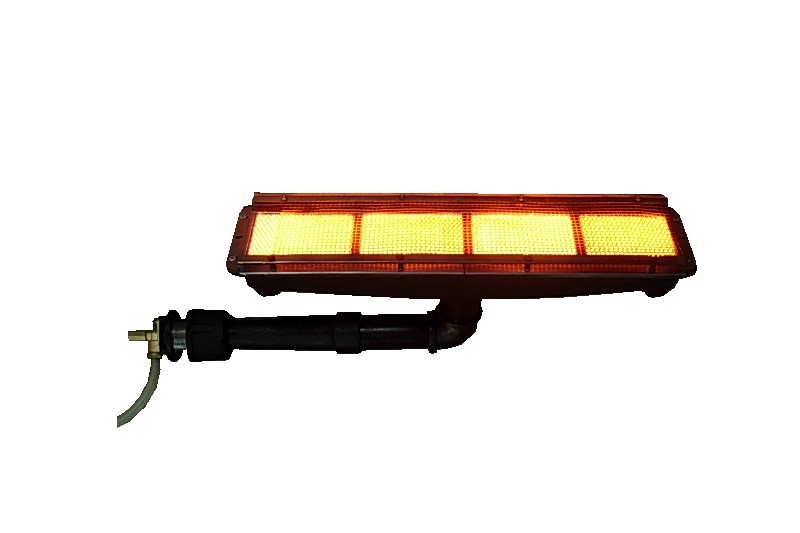

Infrared powder coating gas industrial heater
Infrared powder coating gas industrial heater
Infrared powder coating gas industrial heater
Model
HD262

Item specifics

Dimension(L*W*H)
930*130*175mm
Power Source:
LPG/NG
Shell
Cast iron
Certification
CES

Review

Description

Infrared powder coating gas industrial heater  Details

Why do you choose Catalytic infrared heaters???

  • Saving 20%~30% energy than common gas burner.
  • Friendly to environment.
  • Long useful time:  ≥11000hr
  • Completed thermostat controlling system

Condition:NewType:Infrared Heater,Infrared heaterPower Source:LPG/NG
Place of Origin:                                                                        China                                                   Model Number:THD262
Dimension(L*W*H):930*130*175(mm)Weight:13kg,13.0kgVoltage:110V/220V
Power(W):9.4KW/HCertification:SESWarranty:1 year

Shell:cast ironNozzle:Brass
Up  cover:stamped ironUse time:above 11000hrDimension:(L*W*H)930*130*175(mm)
Use:
industrial oven, power coating oven, curing oven, baking

Infrared powder coating gas industrial heater (HD262)

Model

Length

(mm)

Width

(mm)

Hight(mm)

Weight (kg)

Heat Output

KW/H

Kcal/h

HD82

219

164

109

4.8

3.1

2700

HD61

423

80

94

3.8

2.4

2030

HD101

690

80

115

6.9

3.9

3380

HD162

570

130

175

8.0

6.3

5400

HD242

840

130

175

11.7

9.4

8120

HD262

930

130

175

13.0

10.9

9360

HD 162

Working  principles of industrial oven gas burner infrared HD162  :

Infrared catalytic heater uses the porous cordierite honeycomb combustion plate  with a special catalyst coated as a core component .

Its catalytic combustion is  the best combustion mode ,which means that  gas  (natural gas, liquefied petroleum gas) and combustion-supporting gas (air) are mixed according to the scientific proportion through burner shell (pre-mixed room) with the precise design and manufacturing . Ignited by the ignition, the gas mixture is burning on surface of catalyst which lies in the holes of porous cordierite honeycomb plate .The vast majority(95%) of the heat generated  in the form of infrared radiation penetrate the object directly,put an end to energy loss caused by heating the air to heat the object, the mode of heat convection heating , greatly improve  the energy conversion ability so as to  further save the energy (save 60% of the operation costs under the same industrial conditions compared to the ordinary heating mode --electric heating ).Gas is almost under complete combustion as a result of catalytic combustio. the flue gas pollution is extremely low (CO <0.02%, NOX <10ppm) ,fully meeting the national environmental standards and  there is no need for direct exhaust  fan
