Box Feed Powder Coating Gun System

Model: KF-X1

Item specifics

Delivery Time: 1-3 Working Days

Shipping: By Express (DHL, Fedex, Ups)

Application: Metal Finishing Industry

Weight: 70cm*56cm*54cm

Review

Description

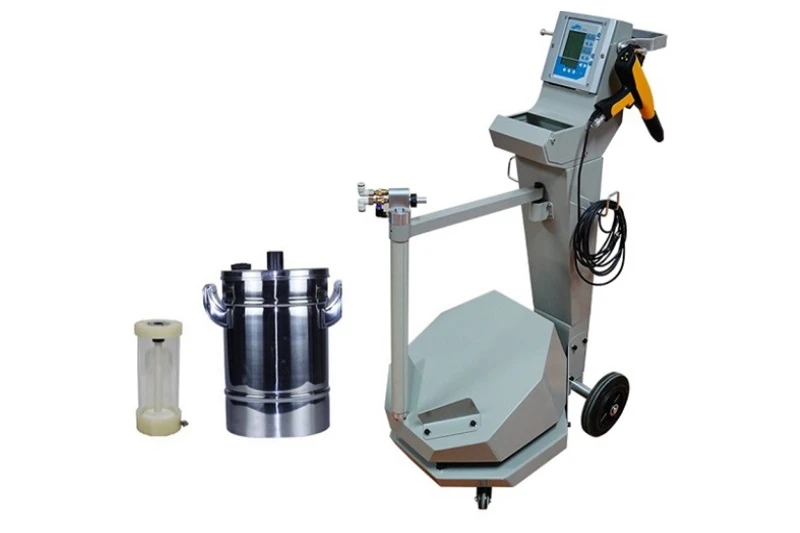

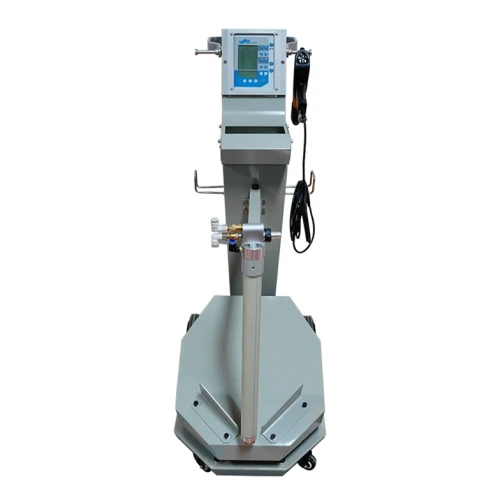

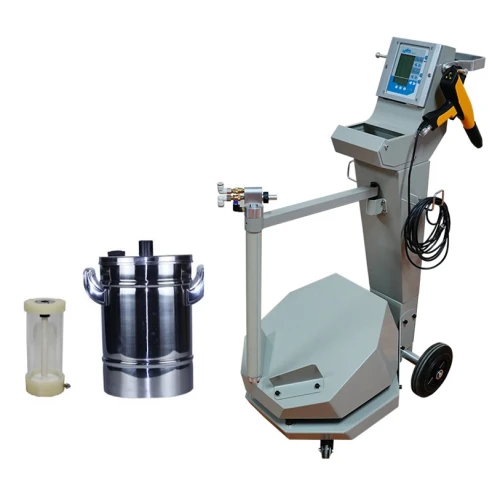

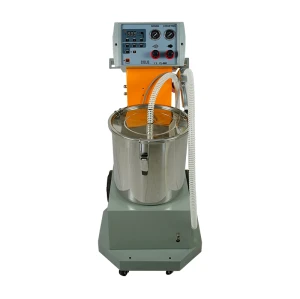

Box Feed Powder Coating Gun System

This powder coating gun system equipped with 2 different sizes of small hoppers to handle any type of powder and any size job. The box feed type system conveys powders directly from the original box to the gun, users do no need to clean the container during color change, suits the demands of fast color change.

Product Details

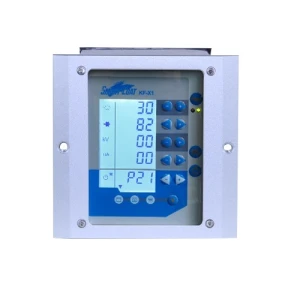

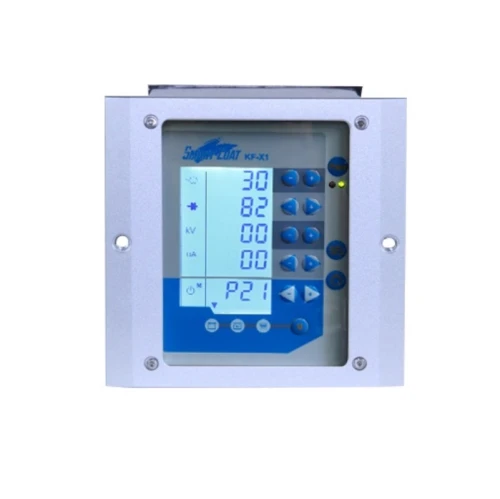

KF-X1 Powder Gun Controller

* This machine applies digital valve control technology for fast and precise adjustment that ensures adjust the powder output and atomization, flexibly control voltage and current.

* There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.

* Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.

* Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.

COLO-08 Electrostatic Spray Gun

* Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.

* Remote control of changing powder flow and application programs on the back cover, fast and easy.

* Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.

KF-X1 Powder Coating Gun Parts

* All the parts for the KF-X1 powder coating gun is best configuration.

* The grounded powder hose embeded with carbon trips is designed for anti-static, smoothly convey the powders from the hopper to the gun.

* Powder injector enables easily assembling to the machine only by manual, and gives uniform powder output for higher coating quality.

* Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.

Product Parameters

Model	KF-X1
Power Range	220V/110V
Frequency	50HZ/60HZ
Gun Weight	500g
Temperature range in use	-10 ℃+50 ℃
Rated output voltage	24VDC
Input Voltage	200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
