Durable High voltge Manual powder gun cascade 1000 809

Group G Powder Gun Parts
Min. Order 1 piece
Terms of Payment L/C, T/T
Update Time 2019-01-17
Item specifics
TypeCasting parts
MaterialAlloy
PlateZinc
UsePowder coating gun
  • Description
  • Product review

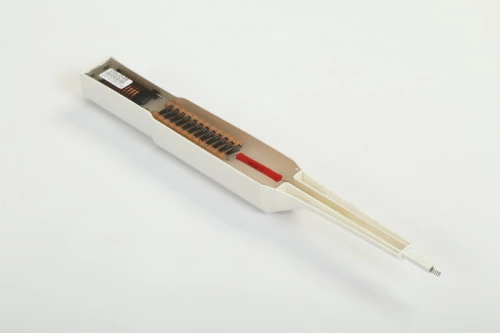

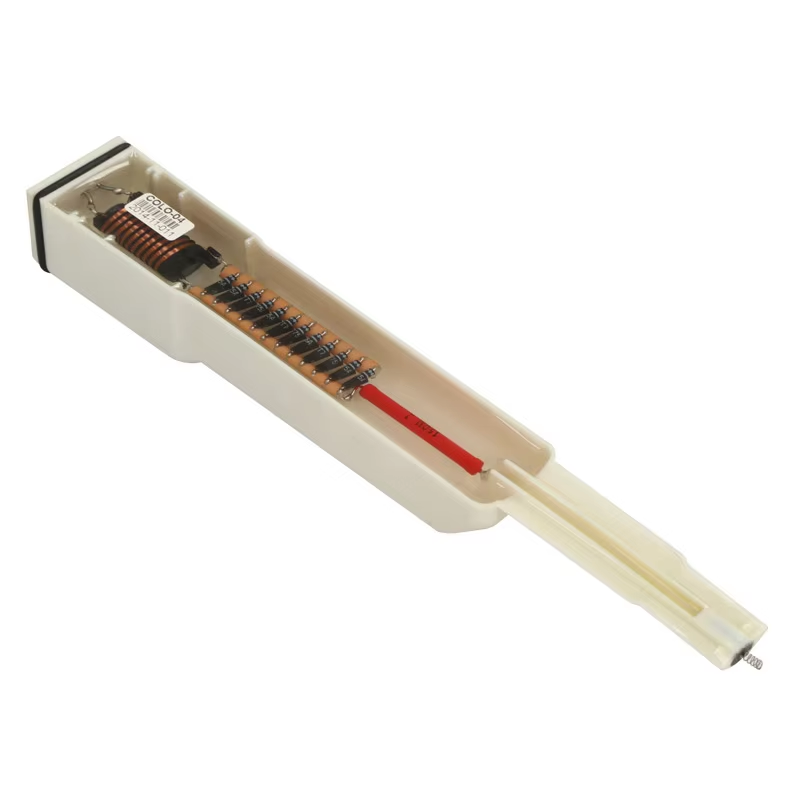

High voltge Manual powder gun cascade 1000 809

A Manual powder gun - complete negative polarity, incl. gun cable - 2 m, rinsing air hose - 14 m, flat jet nozzle, brush and parts kit, without powder hose 1006 100
B Manual powder gun body (incl. cascade), negative polarity 1006 099
C Cascade (negative polarity) - complete 1000 809
1 Gun body 1001 155   Grip - complete set (pos. 5, 6, 7 and 8) 1000 807
2 Trigger - complete (incl. pos. 3) 1001 341
3 Compression spring - 0,36x4,2x49,4 mm 1001 487
4 Trigger cover 1000 801
5 Grip 1000 806
6 Radial gasket 1000 803
7 Gun cable - L=2 m, complete 1006 096  Extension cable for gun cable - L=14m, incl. clamp 1002 162    Cable clamp for extension cable 1002 064
8 Grub screw - M3x8 mm 1000 844
10 Powder tube - complete 1001 339
10.2 O-ring - Ø 12x1.5 mm 1000 822
11 Rinsing air connection 1000 804
12 Clip ring 1000 898
13 Compression spring 1001 488
14 Hopper cover - complete 1000 617
14.1 Print holder - complete (incl. pos. 14.2) 1002 029
14.2 Radial gasket 1000 795
14.3 Gun holder plate - complete 1002 028
14.4 Cap screw - M3x8 mm (not shown) 202 363
15 Diffuser - complete (see corresponding spare parts list)
16 Mounting hook (exchangeable) 1000 877
17 Countersunk head screw - M 4x8 mm, plastic 263 516
18 PT-screw 1000 843
19 Threaded sleeve - complete 1000 948
20 Flat jet nozzle - complete 1000 047
20.1 Electrode holder - complete 1000 055
20.2 Flat jet nozzle 1000 049
Cleaning brush - Ø 12 mm 389 765
Parts set (not shown), consisting of: 1002 359
Round jet nozzle - NS02, complete 382 922
Cable clamp 303 070
Deflector - Ø 16 mm 331 341
Deflector - Ø 24 mm 331 333
Deflector - Ø 32 mm 331 325
O-ring - Ø 12x1.5 mm 1000 822
Countersunk head screw - M 4x8 mm, plastic 263 516
Powder hose - Ø 7 mm (not shown) 1005 097
Replacement for  High voltge Manual powder gun cascade 1000 809
