Automatic Reciprocator for Powder Coating / Spray Painting
- Model
- COLO-2200D
Item specifics
- Delivery Time
- 7-15 Working Days
- Shipping
- By Sea
- Stroke
- 1.5m, 1.8m, 2m , 2.5m
- Application
- Metal Finishing Industry
Review
Description

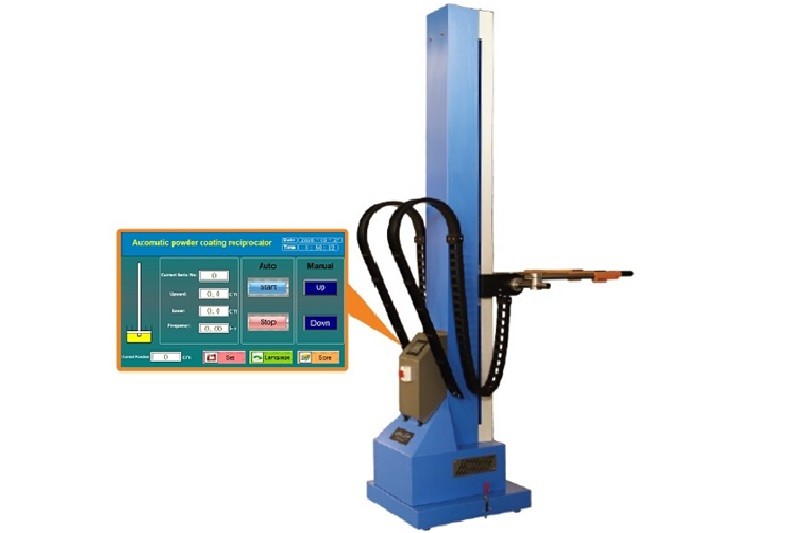

Automatic Reciprocator for Powder Coating / Spray Painting
COLO-2200D powder coating reciprocator using linear rail guide, scrolls up and down with a belt drive, controlled by frequency motor via PLC, giving smooth and precise motion, thus ensuring perfect coating result with great powder savings.
In the automatic spray painting line, reciprocator carries a certain quantity of spray guns for up-and-down motion, delivers excellent uniformity and efficiency of powder coating.
Product Details
PLC Touching Controller Screen
A user-friendly touching screen interface with multi-language offers you great flexibility to set parameters and control the whole process.
* Could set and store 20 individual programs
* User-friendly touch screen is easy to set parameters.
* Three languages of the operation interface: Chinese/English/Spanish.
Excellent Features & Benefits
* Applies a linear silder, gives more gentle up-and-down motion with less wear.
* Precise speed, stroke and position you can set on the PLC controller by touch screen.
* Different job selection from 20 strorable programs, muilti languages for choice.
* Allows to carry up to 24 pcs auto spray guns to achieves a certain productivity.
* Steady construction and running provide more unifom and quality finish.
Product Parameters
Model | COLO-2200D |
Rated voltage | AC220V~240V/50~60Hz |
Motor Power | 1.1KW |
Speed Range | 0-50m/min(0-0.8m/s) |
Stroke | 1.5m/2m/2.5m |
Standard Size | 850*680*2970mm |
Speed control method | Frequency conversion |
Qty of Spray Guns Loading | 2-24 pcs |
