COLO-668A Automatic Powder Coating Gun Control Unit

COLO-668A Automatic Powder Coating Gun Control Unit

Model: COLO-668A

Item specifics

Delivery Time: 1-3 Working Days

Shipping: By Express (DHL, Fedex, Ups)

Application: Metal Finishing Industry

Package size: 43cm*43cm*56cm

Review

Description

COLO-668A Automatic Powder Coating Gun Control Unit

COLO-668A automatic powder coating gun control unit with spray gun, can be integrated into a central cabinet, working with reciprocators, obtain consistent and uniform thickness of powder coatings.

It is the ideal entry into automatic series production offering quality finishes and great powder savings, whose processing can be easily controlled through the central cabinet.

Product Details

COLO-668 Powder Gun Controller

Voltage can be flexibly adjusted from 0-100kv, the values will be shown on the digital display for accurate reading.

Designed with intelligent one-touch bottons, switch for 4 preset application programs:

1. Flat coating for simple and flat shape parts.

2. Corner coating for parts with complex shape and deep corners.

3. Recoating for repairing powder coating parts.

4. Pulse coating, repidly recharge the powder for high transfer efficiency, reduces orange peel effect efficiently.

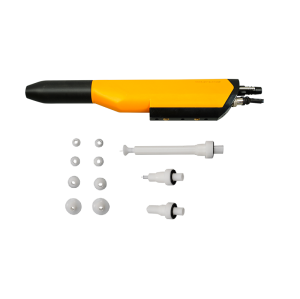

COLO-08 Automatic Spray Gun

* Lightweight, compact gun provides 100 kV and the highest transfer efficiency available for venturi-based coating systems.

* Air-purge cleanable design for fast, easy cleaning, without gun disassembly, a requirement for all quick color change applications.

* Superior Faraday-cage penetration and recoating capability to adapt a wide range of coating challenges, superior powder coating coverage.

* Comes with full array of nozzle assortment to optimize your spraying effect, including flat nozzle, round spray nozzles with different size deflectors, and extension nozzles.

Product Parameters

Model	COLO-668A
Power Range	220V/110V
Frequency	50HZ/60HZ
Gun Weight	500g
Temperature range in use	-10 ℃+50 ℃
Rated output voltage	24VDC
Input Voltage	200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
