Water-based Electrostatic Paint Spray Gun
- Model
- COLO-3009A
Item specifics
- Type
- Liquid painting gun
- Voltage
- 110V/220V
- Dimentions
- 69*56*52cm
- Weight
- 23kgs
Review
Description
Water-based Electrostatic Paint Spray Gun
COLO-3009A electrostatic painting gun is professionally designed for both solvent-based and water-based painting, take the advantages of using environmental water-based paint material. Due to the professional electroinsulating design and special material, this electrostatic painting machine overcomes the problem of static leakage and low static often caused in traditional waterborne painting process, it ensures efficiency and safety.
Electrostatic Painting Spray Gun Application
Electrostatic spray equipment is a perfect solution that widely for painting diferent materials, metal, plastic, wood. it is exceptionally eficient to serves a lot of domestic and industrial applications, such as doors, tables and chars, cabinets, shelves, home appliances motorcycle parts, car parts, infrastructure, machinery components, agricultural tools, etc.
Product Details

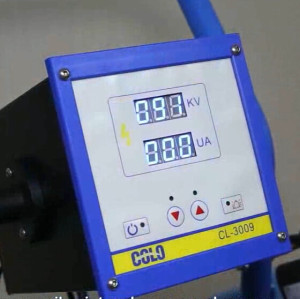

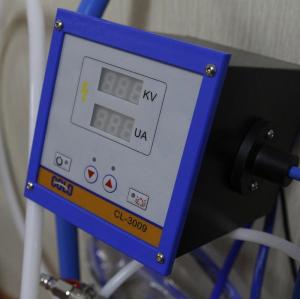

Electrostatic Painting Gun Controller
1. The intelligent controllor offers great flexbility and convenient to set required voltage when coating different parts, precise kv and uA values will digitaly shows on the screen. It is easy operating for everyone.
2. Safety circuit design. lf any operation error, abnormal voltage and current, the circuit protection system will power off automatically and gives buzzer alarm to guarantee safety.
3. Strictly tested before delivery, ensure well-performance in mechanical and electrical.
Electrostatic Painting Gun Features
1. Paint particles are fully charged with superior atomization thanks to the 80kv powerful spray gun.
2. Gun parts are extremely durable, giving a long service life and simple daily maintenance. Modular design makes it easy to clean and maintenance.
3. Full parameters can be adjusted on the gun, such as static on/off, static +/-, atomizedair, spraying width and paint output, easy to operate.
4. Spray gun body material is resistant to high voltage electrostatics whose handle ismade of low impedance composite material, safe enough for long time work.
Paint Spray Gun Nozzles
We supply 2 kinds of spray nozzles for excellent atomization performance, and userscan freely change to suit for different needs.
Fan spray nozzle
Made of high density aluminium alloy, whose spray width range is 4mm-15mm, features painting faster.
Round spray nozzle
Made of durable stainless steel, whose spray width range is 7mm-25mm features painting wider and softer.
Product Parameters
|
Model
|
COLO-3009-A
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 396g |
|
Temperature range in use |
0-40 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 0kv-80kv |
Maximum output current | 60Ua(max) |
Air Pressure | 0-100KV (adjustable) |
Maximum powder injection | 0.6MPa-0.8MPa |
Air Consumption | 75-230L/min |
Product Picture
