Lab Powder Coating Equipment with 4pcs Cup Hopper
- Model
- COLO-191S-TB
Item specifics
- Delivery Time
- 1-3 Working Days
- Shipping
- By Express (DHL, Fedex, Ups)
- Application
- Metal Finishing Industry
- Package size
- 43cm*43cm*56cm
Review
Description

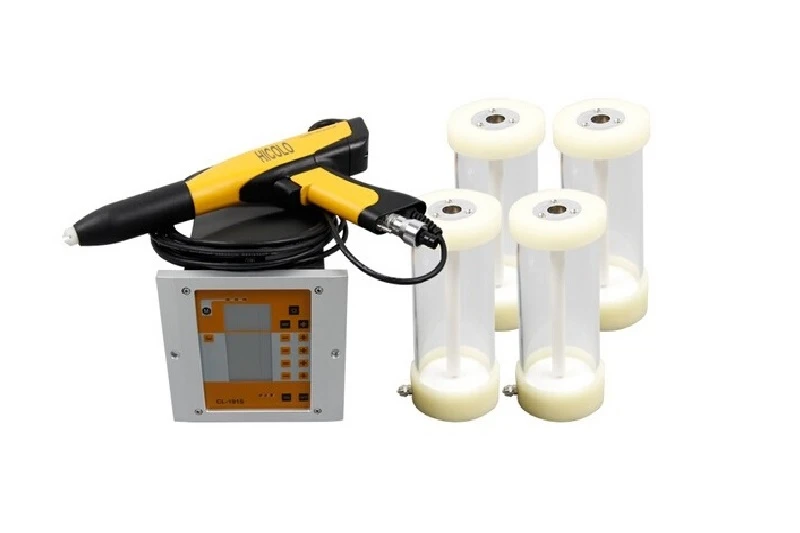

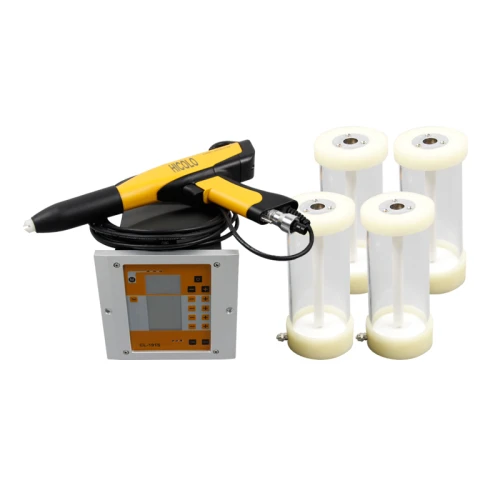

Lab Powder Coating Equipment with 4pcs Cup Hopper
This lab powder coating equipment comes with 2lbs fluidizing powder cups, which is ideal for laboratory or powder manufacturer testing use. Clients can purchase two or more powder cups for changing color fast. COLO-191S controller with digital valve technology, offers precise adjustment of electrical and pneumatic data, ensures smooth beautiful coating effect as well as great powder savings.
Product Details

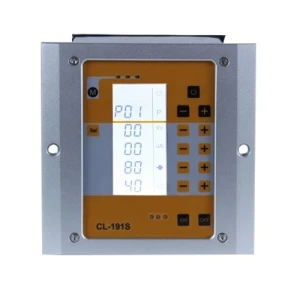

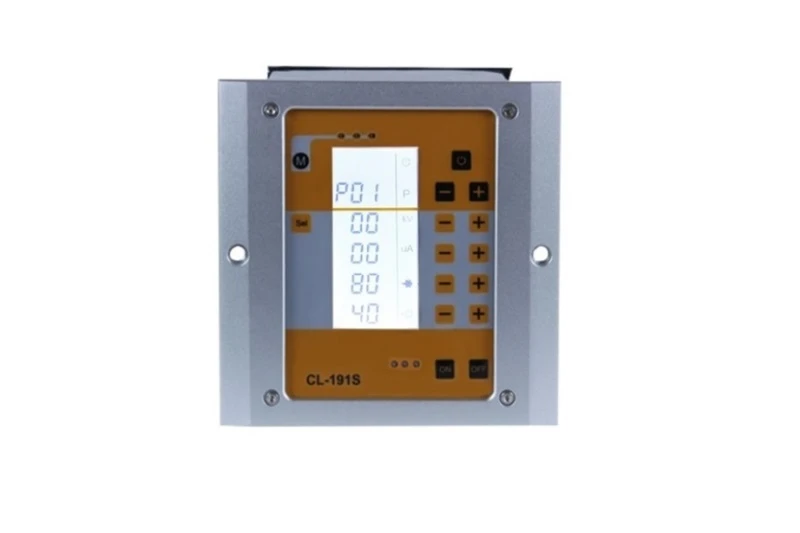

COLO-191S Powder Gun Controller
* This machine applies digital valve control technology for fast and precise adjustment that ensures adjust the powder output and atomization, flexibly control voltage and current.
* There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
* Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
* Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
COLO-08 Electrostatic Spray Gun
* Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.
* Remote control of changing powder flow and application programs on the back cover, fast and easy.
* Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.
* Comes with full array of nozzle assortment to optimize your spray effect, including flat, round spray nozzles with different size deflectors, and extension nozzles.

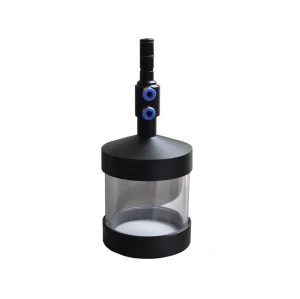

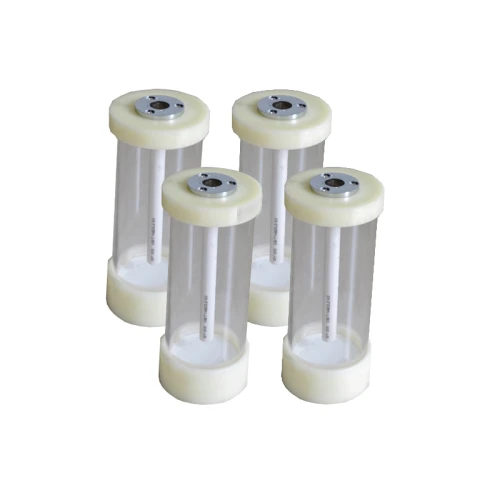

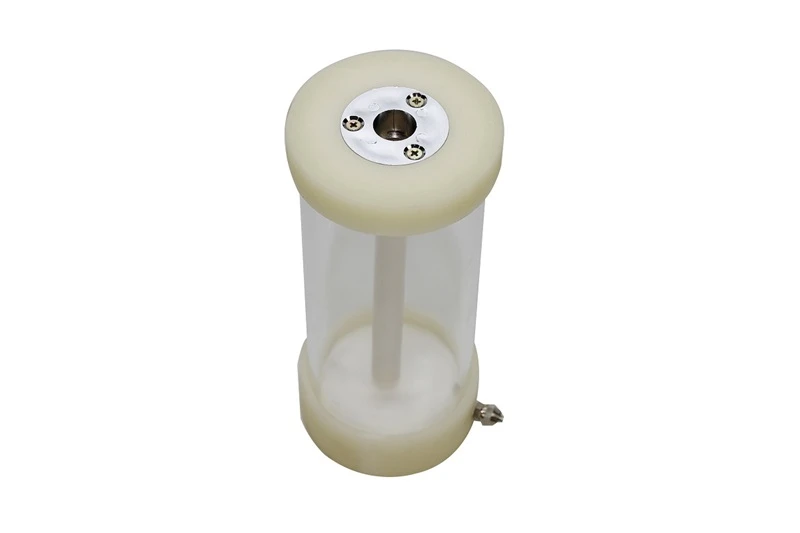

Powder Coating Hopper
* Size: D10xH20cm, Capacity: 2 pounds powders.
* Made of non-stick materials, can be dismounted into parts, which is easy to clean during color change
* The powder hopper with fluidizng board prevents the powder block, delivers smooth powder flow.
* It is also well sealed that keeps the powders from contaminants and damp.
Product Parameters
|
Model
|
COLO-191S-TB
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |
