 Powder Coating System with Double Guns & Controllers

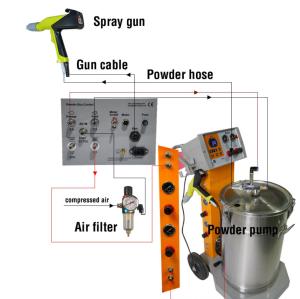

COLO-191S powder coating machine system combines double guns and controllers in one device, allows two operators to powder coat simultaneously, specially designed to increase efficiency when coating large workpieces or achieving higher production. With 60 pounds fluidizing hopper suitable for single color application, powders are completely fluidized and easily conveyed to the gun with a high degree of uniformity and consistency.
Product Details

COLO-191S Powder Gun Controller
* This machine applies digital valve control technology for fast and precise adjustment that ensures adjust the powder output and atomization, flexibly control voltage and current.
* There are 3 one-touch intelligent buttons which stands for 3 pre-set application programs: panel coating, corner coaring and recoating, giving easy access to powder coating beginners.
* Allows experienced users create and store a library of personalized programs which are optimized for their parts and powders.
* Thanks to the DVC technology it allows precise and repeatable regulations of the conveying and supplementary air to the injector, which are very important to achieve stable powder output and unifrom coating results.
COLO-08 Electrostatic Spray Gun
* Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.
* Remote control of changing powder flow and application programs on the back cover, fast and easy.
* Lightweight spray gun with ergonomic design tends to reduce operator's fatigue after long time use.
* Comes with full array of nozzle assortment to optimize your spray effect, including flat,  round spray nozzles with different size deflectors, and extension nozzles.
Fluidizing Powder Hopper
* Size: D36xH62cm, Capacity: 60 pounds powders.
* The easy cleaning powder coating hopper is popular among worldwide powder coaters, It is extraordinary designed to be dismountable, convenient to clean the inwall, bottom, fluidizing board, seal ring of the hopper.
* The powder hopper with fluidizing bed prevents the powder block, which is also well sealed keep the powders from contaminants and damp.
Product Parameters
Power Range
Gun Weight
Temperature range in use
-10 ℃+50 ℃
Rated output voltage
Input Voltage
Maximum output current
Maximum output voltage
0-100KV (adjustable)
Maximum powder injection
negative (-)
