Metal finishing application automatic robot
Metal finishing application automatic robot
Metal finishing application automatic robot
Metal finishing application automatic robot
Model
colo-2000D

Item specifics

Stroke
1.5/1.8/2/2.5m
Speed
adjusted
Usage
powder coating ,liquid painting
Control
Mitsubishi inverter
Brand
COLO
Delivery time
7 days

Review

Description

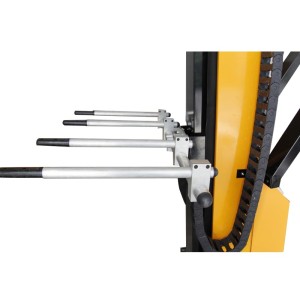

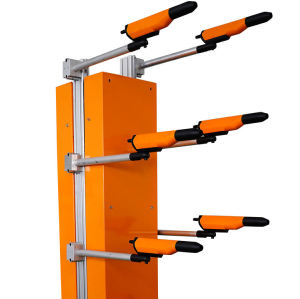

This is important part of a automatic powder coating line. Automatic Reciprocator (reciprocating machine) (Work with Electrostatic Powder Coating Gun) With several electrostatic powder coating gun on the reciprocator Japan Mitsubishi Transducer & PLC controlled Four automatic spray gun rods(qty of the rods can be ordered) .

Technical characteristics
Powe supply:AC 220V  50HZ-60HZ
Frequency:  Japanese  Mitsubishi
Power motor:0.75KW
Sweep speed:0~60m/min
Acceleration: 1M/Second
speed adjustable by inverter.
Low limit setting by potentiometer
Environmental:0~50degree

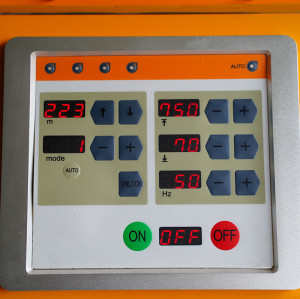

Star signal model:digital display
Max load capacity:40㎏
Motion Range:0.3~2.5M(Can be setting)
Point delay time :0-5sec(optional)
The benefits of colo-2000D are:

80 storable programs
Maintenance-free motor
Extremely smooth running through chain
High loading capacity and stability
Long-stroke and short –stroke operation

COLO reciprocator powder paint line



http://www.youtube.com/watch?v=bnywkkhlU7k
