Manual Powder Coating Equipment for Beginners
Manual Powder Coating Equipment for Beginners
Manual Powder Coating Equipment for Beginners
Manual Powder Coating Equipment for Beginners
Manual Powder Coating Equipment for Beginners
Model
COLO-191S-V, COLO-1517, COLO-1864

Item specifics

Delivery Time
15-20 Working Days
Shipping
By Sea
Application
Metal Finishing Industry

Review

D***r
2022/2/18 07:14

Bonsoir, je m'appelle Anwar de Tunisie. Je suis intéressé par vos produits équipement pour peinture à poudre. Je souhaite envoyer un projet dans le domaine de la peinture à poudre dans mon pays. Pouvez-vous m'aider ?

Description

Manual Powder Coating Equipment for Beginners
Application
The Manual Powder Coating Equipment Package includes:
COLO-191S-V powder coating machine,
COLO-1517 powder coating booth,
COLO-1864 powder coating oven,
usually supports for manual batch small to medium scale production, such as alloy wheels, motorcycle parts, bike frames, fire hydrants, etc. Also suitable for beginners to start powder coat business.
COLO-191S-V Powder Coating Machine
Excellent Features
1. Digital valve control technology for fast and precise adjust the powder output and atomization, flexibly control voltage and current.
2. 3 Pre-set application programs, flat parts coating, corner coating and re-coating. Allows experienced users to create and store 20 application programs which are optimized for their parts and powders.
3. Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.
4. The box feed type is ideal for multi-color application with quick change operations.
5. Comes with full array of nozzle assortment, including flat, round spray nozzles with different size deflectors, and extension nozzles.
Model
COLO-191S-V
Power Range
220V/110V
Frequency
50HZ/60HZ
Gun Weight
500g
Temperature range in use
-10 ℃+50 ℃
Rated output voltage
24VDC
Input Voltage
200kv
Maximum output current
180Ua(max)
Maximum output voltage
0-100KV (adjustable)
Maximum powder injection
600g/min
Polarity
negative (-)

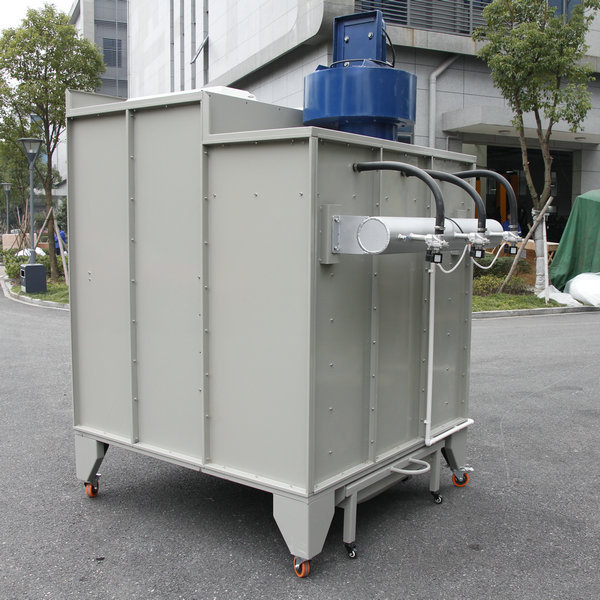

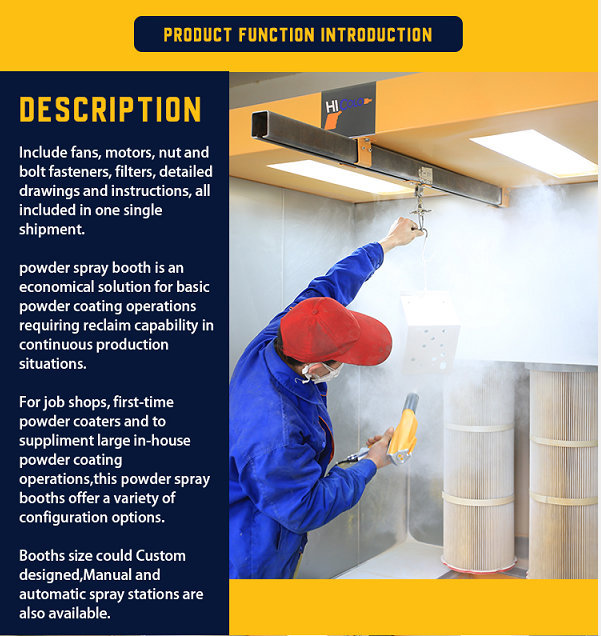

COLO-1517 Powder Spray Booth
Excellent Features
1. Consists of 3 pcs cartrifge filters for high efficiency powder recovery that makes clean and dustless working condition.
2. The compact powder booth is made of durable steel plate by powder-coated, sturdy and long lifespan.
3. Applies PLC control for filter cleaning, fan on/off and other functions
4. Designed with powder recovery hopper for easy emptying and recycling.
5. A high-performance fan efficiently circulate air with low noise and less energy.
Model
COLO-1517
Type
Closed Powder Coating Booth
Operating Dimensions
Width1500 * Depth1000 * Heght1700mm
Overall dimensions
Width1600 * Depth2000 * Heght2250mm
Power Supply
220V/380V, 3Phase, 50-60HZ
Fan Power
2.2kw
Cartridge Filter
3 pcs, Quick-release Type, Polyester Material
Filter Cleaning
Pneumatic
Air Consumption
4000m^3/h

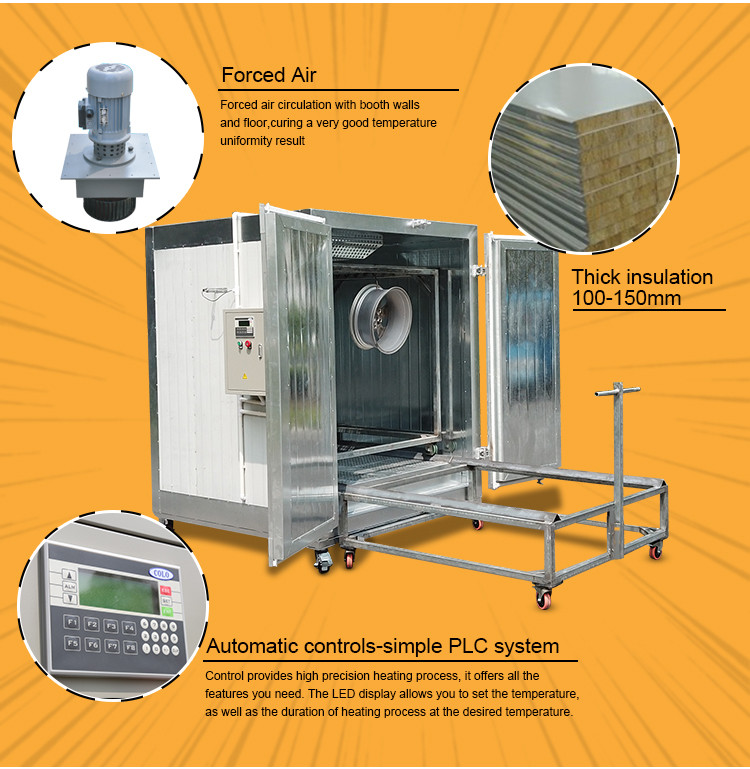

COLO-1864 Powder Coting Oven
Excellent Features
1. 0.75kw Circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber
2. Made of 100mm thick rockwool board, effectively minimums temperature dropping.
3. The PLC control system offers user-friendly interface for users to set the required temperature and heating time accurately.
4. Standardly equipped with a pair of carts: internal one and external one, for easy handling of workparts.
Model
COLO-1864
Working Dimension (mm)
Width1600 * Heght1800 * Depth1400mm
Overall Dimension (mm)
Width1900 * Heght2200 * Depth1700mm
Voltage
220V/380V(50-60Hz)
Heating Power
18kw
Warm-up Time
15-30min (180°C)
Temperature stability
< ± 3-5°C
Temperature max.
250°C
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Transportation
Trolley
