Powder Coating Machine, Booth and Oven Kit
Powder Coating Machine, Booth and Oven Kit
Powder Coating Machine, Booth and Oven Kit
Powder Coating Machine, Booth and Oven Kit
Powder Coating Machine, Booth and Oven Kit
Model
COLO-660, COLO-1115, COLO-1688

Item specifics

Delivery Time
15-20 Working Days
Shipping
By Sea
Application
Metal Finishing Industry

Review

Description

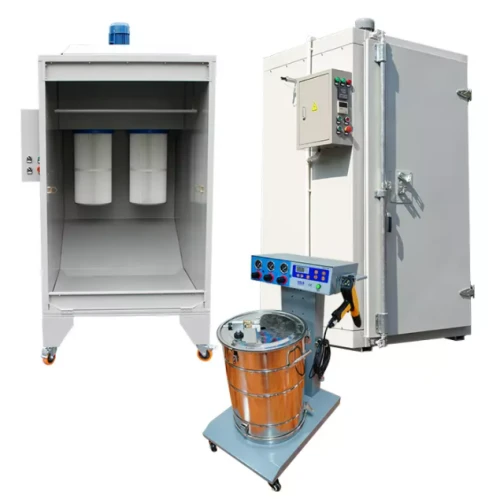

Powder Coating Machine, Booth and Oven Kit
Application
The Powder Coating System Kit Package includes:
COLO-660 powder coating machine,
COLO-1115 powder coating booth,
COLO-1688 powder coating oven,
suitable for small scale production with easy operation. It is ideal for wheel refurnishment, and other small objects finishing by using less cost and labor.

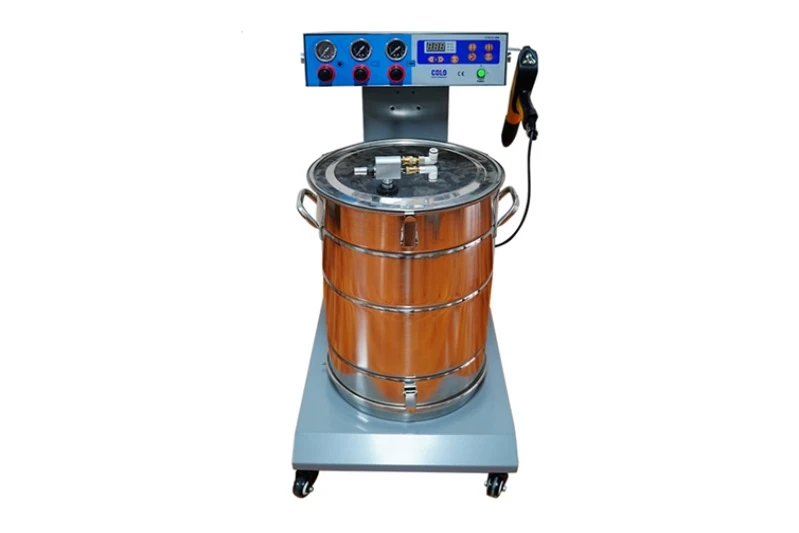

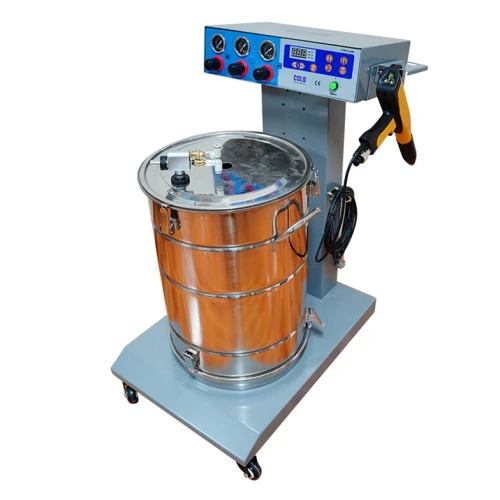

COLO-660 Powder Coating Machine
Excellent Features
1. Voltage can be easily set by buttons from 0-100kv,  the voltage and amperage values will be shown on the digital display for accurate reading.
2. One-touch intelligent operation buttons give a quick access to powder coating, with a new pulse coating technologies maximizing the electrostatic effect.
3. 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency.
4. Equipped with a 55ml fluidizing powder hopper, delivers uniform powder flow.
5. Comes with full array of nozzle assortment, including flat, round spray nozzles with different size deflectors, and extension nozzles.
Model
COLO-660
Power Range
220V/110V
Frequency
50HZ/60HZ
Gun Weight
480g
Stainless Steel Powder Hopper Capacity
55L
Temperature range in use
-10 ℃+50 ℃
Rated output voltage
24VDC
Input Voltage
200kv
Maximum output current
180Ua(max)
Maximum output voltage
0-100KV (adjustable)
Maximum powder injection
600g/min
Polarity
negative (-)

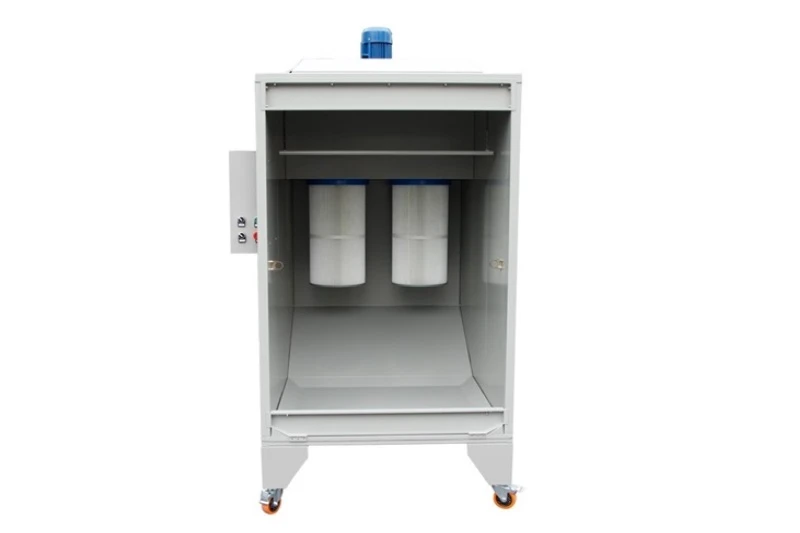

COLO-1115 Powder Spray Booth
Excellent Features
1. Consists of 2 pcs cartrifge filters for high efficiency powder recovery that makes clean and dustless working condition.
2. The compact powder booth is made of durable steel plate by powder-coated, sturdy and long lifespan.
3. Electric control box helps setting temperature and heating time.
4. Designed with powder recovery hopper for easy emptying and recycling.
5. A high-performance fan efficiently circulate air with low noise and less energy.
Model
COLO-1115
Type
Closed Powder Coating Booth
Operating Dimensions
Width1000 * Depth1000 * Height1500 mm
Overall dimensions
Width1200 * Depth1200 * Height1900 mm
Power Supply
220V/380V, 3Phase, 50-60HZ
Nominal Power
0.75kw
Cartridge Filter
2 pcs, Quick-release Type, Polyester Material
Filter Cleaning
Pneumatic
Air Consumption
805-1677m^3/h

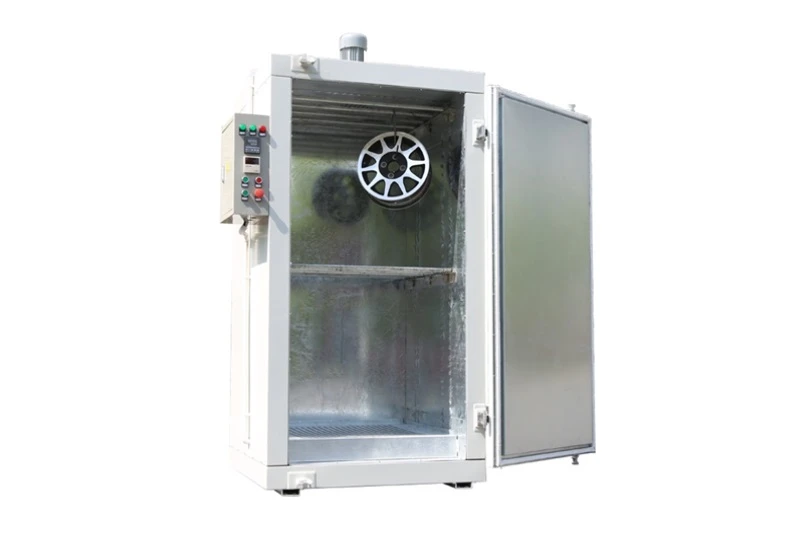

COLO-1688 Powder Coting Oven
Excellent Features
1. The Circulation fan circles the hot air to warm the powder coating oven interior, minimize temperature difference and guarantee uniform-heated chamber.
2. Made of 100mm thick rockwool board, effectively minimums temperature dropping.
3. Electric control box helps setting temperature and heating time.
4. Standardly equipped with shelves and rails installing in the inner oven to hang the metal pieces.
5. High quality electric heating tube on the bottom, 4 pcs, 1.5kw of each, ensures rapid temperature rising.
Model
COLO-1688
Working Dimension (mm)
1000width x 1600 height x 845 depth
Overall Dimension (mm)
1250 width x 2085 height x 1050 depth
Voltage
220V/380V(50-60Hz)
Power supply
Electric/9kw(1.5kwx6pcs)
Warm-up Time
15-30min (180°C)
Temperature stability
< ± 3-5°C
Temperature max.
250°C
Circulation/ Air flow
Vertical ,Variable through holes on the walls
Ventilation performance
805-1677m3/h
