Complete Powder Coating System for Big Size Parts
- Model
- COLO-191S-V, COLO-3212, COLO-5219
Item specifics
- Delivery Time
- 15-20 Working Days
- Shipping
- By Sea
- Application
- Metal Finishing Industry
Review
Description
Complete Powder Coating System for Big Size Parts
Application

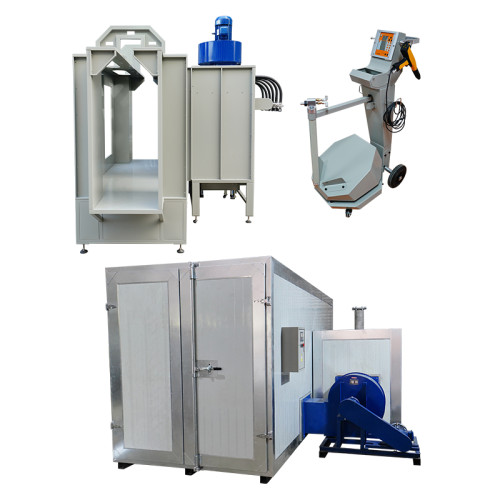

The Complete Powder Coating System includes:
COLO-191S-V powder
coating machine,
COLO-3212 powder coating booth,
COLO-5219 powder
coating oven,
is ideal for perfectly coating aluminum profiles, window frames, doors, fence, cyclinders in manual operation. It allows a certain quantity of workparts obtainign curing process which extactly improves production efficiency.
COLO-191S-V Powder Coating Machine
Excellent Features
1. Digital valve control technology for fast and precise adjust the powder output and atomization, flexibly control voltage and current.
2. 3 Pre-set application programs, flat parts coating, corner coating and re-coating. Allows experienced users to create and store 20 application programs which are optimized for their parts and powders.
3. Long-lasting 100kv spray gun maximizes the electrostatic charging capacity, provides high transfer efficiency and saves materials.
4. The box feed type is ideal for multi-color application with quick change operations.
5. Comes with full array of nozzle assortment, including flat, round spray nozzles with different size deflectors, and extension nozzles.
|
Model
|
COLO-191S-V
|
|
Power Range |
220V/110V |
|
Frequency
|
50HZ/60HZ |
Gun Weight | 500g |
|
Temperature range in use |
-10 ℃+50 ℃ |
Rated output voltage | 24VDC |
Input Voltage | 200kv |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100KV (adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative (-) |

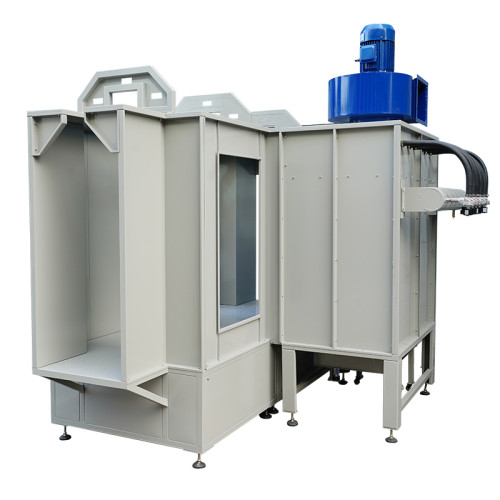

COLO-3212 Powder Spray Booth
Excellent Features
COLO-3212 powder painting booth is designed for the double-sided manual coating, it is the best choice for conveyorized coating applications. The work parts enter the booth through the overhead track from one side opening to another side, during the movement, the parts are powder sprayed, double working stations allows operators to paint both sides of parts simultaneously.
|
Model |
COLO-3212 |
Type | Manual Powder Coating Booth |
|
Operating Dimensions |
Width620 * Depth2920 * Height1500mm |
|
Overall dimensions |
Width1200 * Depth3000 * Height2030mm |
|
Power Supply |
220V/380V, 3Phase, 50-60HZ |
Fan Power | 3.5kw |
Cartridge Filter | 6 pcs, Quick-release Type, Polyester Material |
Filter Cleaning | Pneumatic |

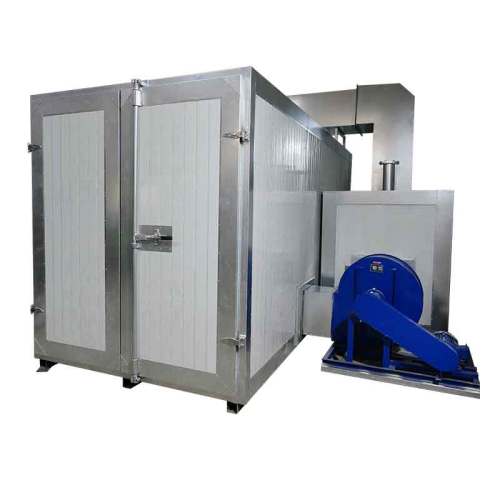

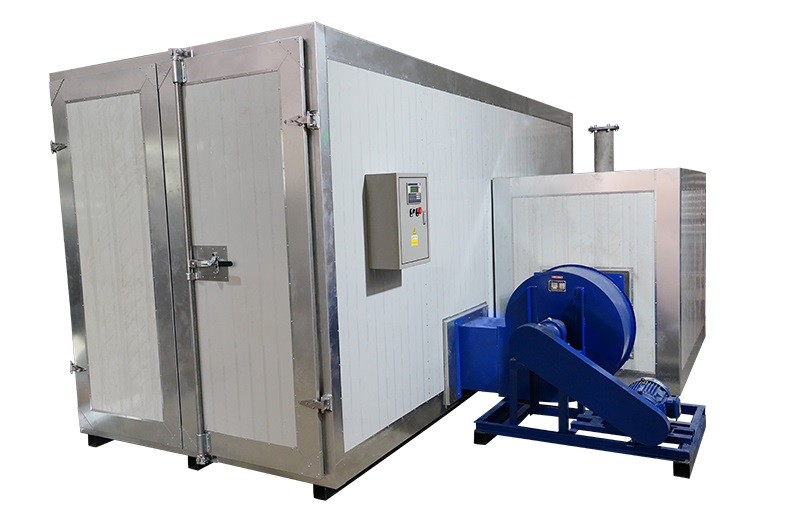

COLO-5219 Powder Coting Oven
Excellent Features
COLO-5219 powder coating oven is designed for curing longer or large workparts in batches, 5 meter length allows batch production metal frames, plates, furniture products, etc.
Using gas or diesel as heating source will save more energy expense. By using high efficiency heating system, It performs quick raising of temperature that ensures optimal curing effect.
|
Model
|
COLO-5219
|
Power supply | Gas/Diesel/LPG |
|
Working Dimension (mm)
|
1900 width x 1900 height x 5000 depth
|
|
Overall Dimension (mm)
|
2100 width x 2480 height x 5200 depth
|
Burner | Italy RIELLO, 200,000kcal |
Voltage | 220V/380V(50-60Hz) |
Motor power | 5.5kw |
Warm-up Time | 15-30min (180°C) |
Temperature stability | < ± 3-5°C |
Temperature max. | 250°C |
Circulation/ Air flow | Vertical ,Variable through holes on the walls |
Transportation | Trolley |
